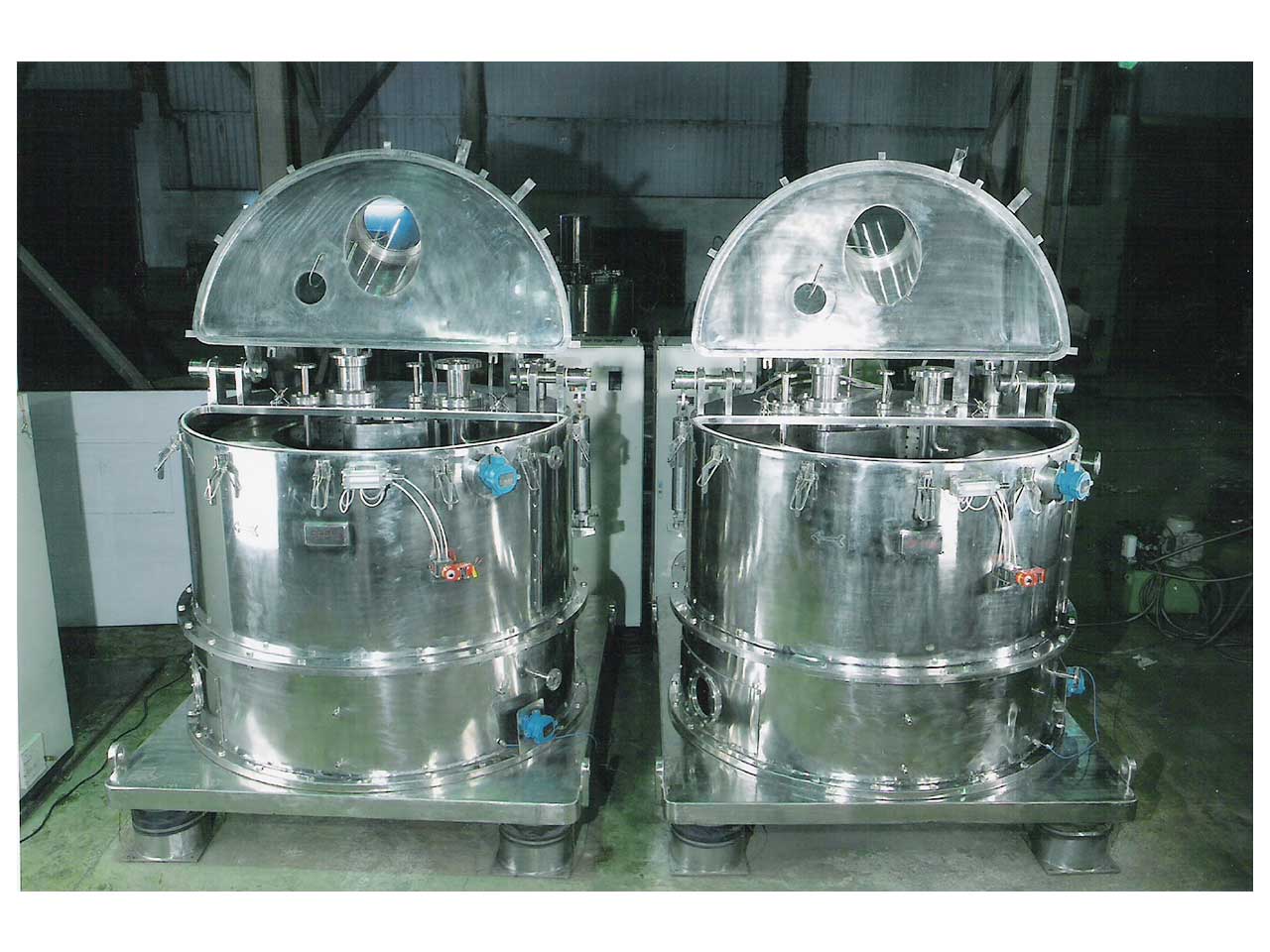

Bottom Discharge

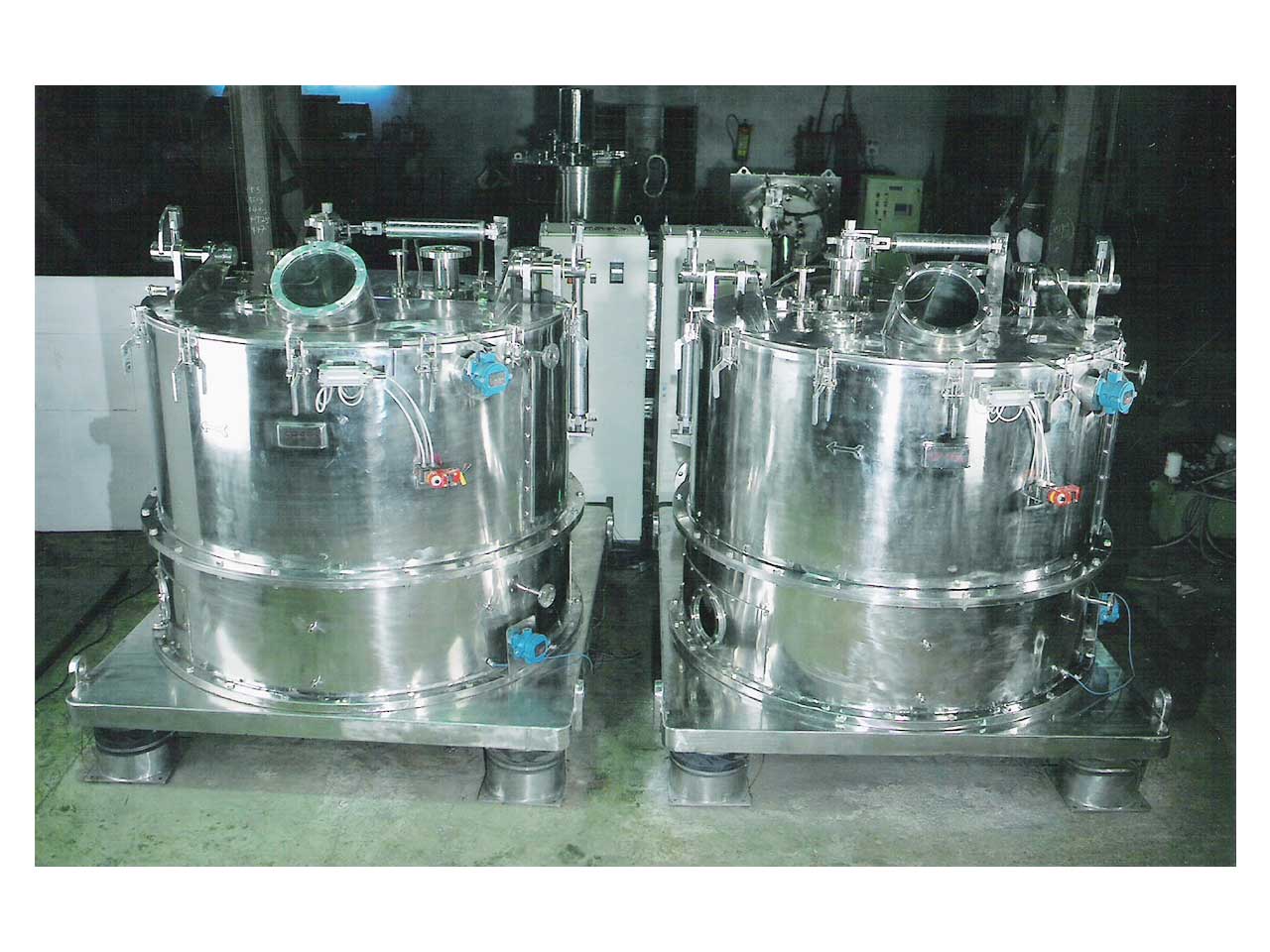

Driven Bottom Discharge

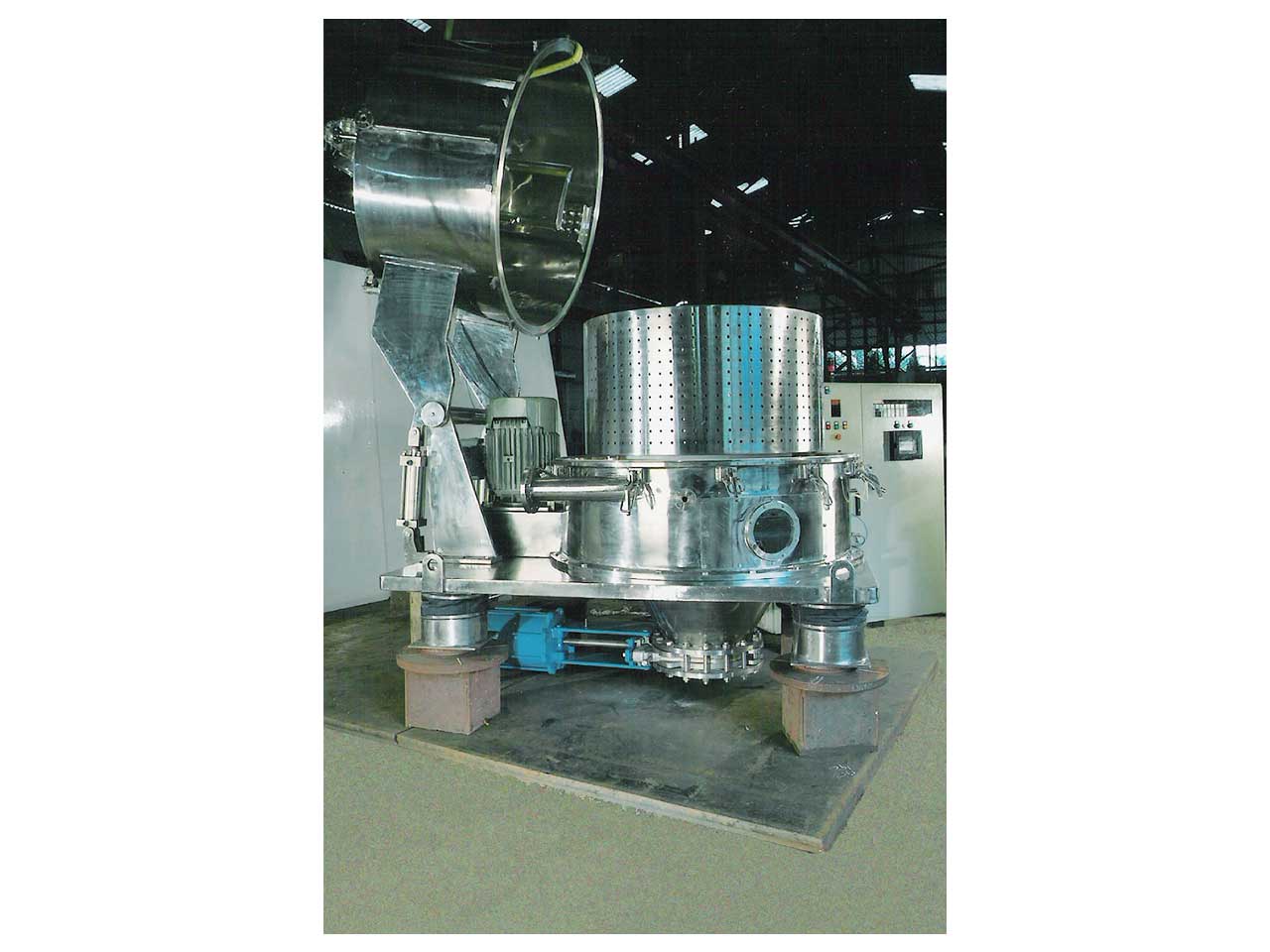

Bottom Driven Discharge
Surface Finish

Mirror or Matt Finish can be provided with Grit 220 & Above on Contact & Non-Contact areas.

Drive

A.C. Inverter Drive shall be provided to vary the basket speed with built-in dynamic braking.

Cleaning-In-Place (C.I.P.) Arrangement

Provided in the centrifuge machine to clean the internals of the filtering centrifuge machine. CIP nozzles are placed at a different location to spray the wash liquid to all the surface which are not accessible from outside. During the cleaning process the centrifuge basket to be operated at a low speed to make cleaning more effective.

The 4-point Suspension

The centrifuge is mounted on inertia platform and suspended over four vibration-isolating dampers. This provides the following unique advantages:

No foundation required

Modular Design with Complete Flexibility to relocate the filtering centrifuge anywhere in the plant.

Drive system (Belt & Pulleys) totally enclosed and can be purged with Nitrogen gas (Flameproof Design).

Four Point Mounting Centrifuge.

We have upgraded all our machines from three point centrifuge machines to four point suspensions.

Cake Sensor (Mechanical / Ultrasonic)

Can be provided to limit the cake thickness in the basket. The range of the cake thickness can be adjusted to avoid material overflow.

  • The Solid Filter Cake is cut with the help of a scraper system
  • Solids discharge through a single outlet
  • Solids can be Discharged in totally vapor tight condition, thus there are no health hazards to the operator
  • The complete centrifuge is pressure tested as per DIN standard
  • Handling of discharge solids can be easily done with the help of a conveyor or trolley
  • No manual contact with cake, thus no contamination
  • Heel Blow Back system available to dislodge the residual cake
  • Good accessibility to the casing and basket makes quick cleaning and changeover to other products easy
  • Complete operation cycle can be programmed via a PLC, drastically reducing manual labor
  • Spray jets for efficient washing
Zero Speed Interlock

The pneumatic cylinder will automatically get engaged with the lid as soon as basket starts rotating and gets disengaged only when it completely stops which will ensure that the lid can be opened only when the basket comes to a complete halt.

Proximity Sensor

Shall be provided as a safety interlock for the Lid / Body. Unless the Lid / Body is closed motor cannot start and once the lid is opened motor power cuts off.

Vibration Tripper

Will trip the Centrifuge during excessive vibration.

Vibration Monitoring System

This system shall continuously monitor the vibration level of the machine. The system has two set point, one set point is for Alarm level and another set point is for trim level. The system also gives 4-20 amps output which can be hooked up to PLC.

Nitrogen Blanketing System/ Nitrogen Inertisation System

The Nitrogen Inertisation is provided to the centrifuge basket chamber (casing) and to the bearing housing (sealing system). This system shall ensure that during the centrifuge operation the adequate nitrogen pressure is maintained within the basket chamber and bearing housing stuffing box chamber. Therefore, creating a Flame Proof System.

Note: Oxygen Analyzer can be provided in the vent line.

Automation

Programmable Logic Controller

All the process cycles of centrifuge operations can be automated through a Programmable Logic Controller. The instruments mounted on the machine will communicate with the PLC system. The process cycles can be specifically designed and programmed to work according to the logic.

Note: Intrinsically Safe Graphical control display (H.M.I) can be provided.


Heel Blowback System

The centrifuge machine is fitted with residual cake heel blowback system, which will remove the residual cake heel after the scraping operation.


Design Variations Available

Full Body Opening (Hydraulic / Pneumatic)

Full Lid Opening (Hydraulic / Pneumatic / Spring Loaded)

Half Lid Opening

Single Motion / Dual Motion Scrapper

Hydraulic / Motorized Scrapper

Centre Large Opening / Kidney type Solid discharge ports

MOC: Stainless Steel, Carbon Steel, Hastelloy etc.

Coating: Rubber Lined, Halar (ECTFE) Coating, Teflon (PFA) Coating etc.

Note: For any specific requirement for customization please feel free to contact us.

Halar Coated Centrifuge Machines.

Full Body Top Opening Centrifuge.

Multi Point Full Body Bottom Cake Discharge.

Technical Specification Centrifuge Model
Details Unit SM 36 BD SM 48 BD SM 48 BD SM 60 BD SM 60 BD
Basket Diameter mm. 900 1200 1220 1500 1524
Basket Depth mm. 500/600 600/630 800 600/760 600/760
Working Capacity under lip Lts. 172/206 368/386 490 589/716 623/716
Basket Load (Max) Kgs. 172/206 368/386 490 589/716 623/716
Max. Basket revolutions rpm. 1000 900 900 800 800
Centrifugal Force G. 503 543 543 536 545
Filtration Area sq.mts. 1.41/1.69 2.26/2.37 3.01 2.83/3.58 2.87/3.63
Motor Power kW 7.5 15 15 18.5 18.5
Overall Dimensions -
Length over Motor mm. 1950 2160 2160 2550 2550
Width mm. 1500 1850 1850 2225 2225
Operating Height mm. 2175 2575 2575 3075 3075
Weight of Machine with Motor Kgs. 2750 4500 4500 6000 6000
