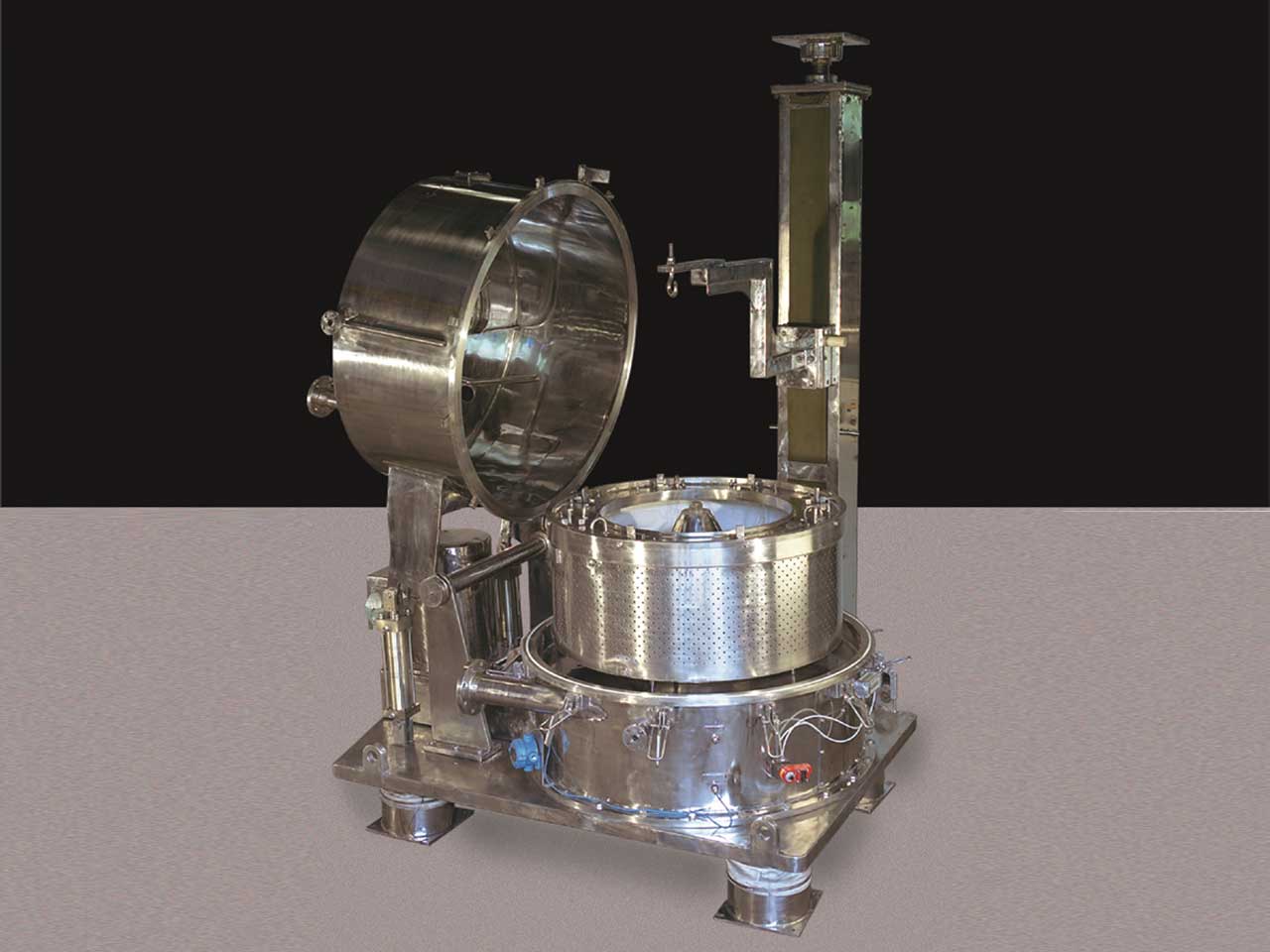

Instant Top Discharge
Top Discharge
Top Discharge Centrifuge
GMP Discharge Centrifuge
Surface Finish

Mirror or Matt Finish can be provided with Grit 220 & Above on Contact & Non-Contact areas.

Drive

A.C. Inverter Drive shall be provided to vary the basket speed with built-in dynamic braking.

Cleaning-In-Place (C.I.P.) Arrangement

Provided in the centrifuge machine to clean the internals of the gmp centrifuge. CIP nozzles are placed at a different location to spray the wash liquid to all the surface which are not accessible from outside. During the cleaning process the centrifuge basket to be operated at a low speed to make cleaning more effective.

The 4-point Suspension

The centrifuge is mounted on inertia platform and suspended over four vibration-isolating dampers. This provides the following unique advantages:

No foundation required

Modular Design with Complete Flexibility to relocate the centrifuge anywhere in the plant.

Drive system (Belt & Pulleys) totally enclosed and can be purged with Nitrogen gas (Flameproof Design).

Drive system (Belt & Pulleys) totally enclosed and can be purged with Nitrogen gas (Flameproof Design).

Four Point Mounting Centrifuge.

We have upgraded all our machines from three point centrifuge machines to four point suspensions.

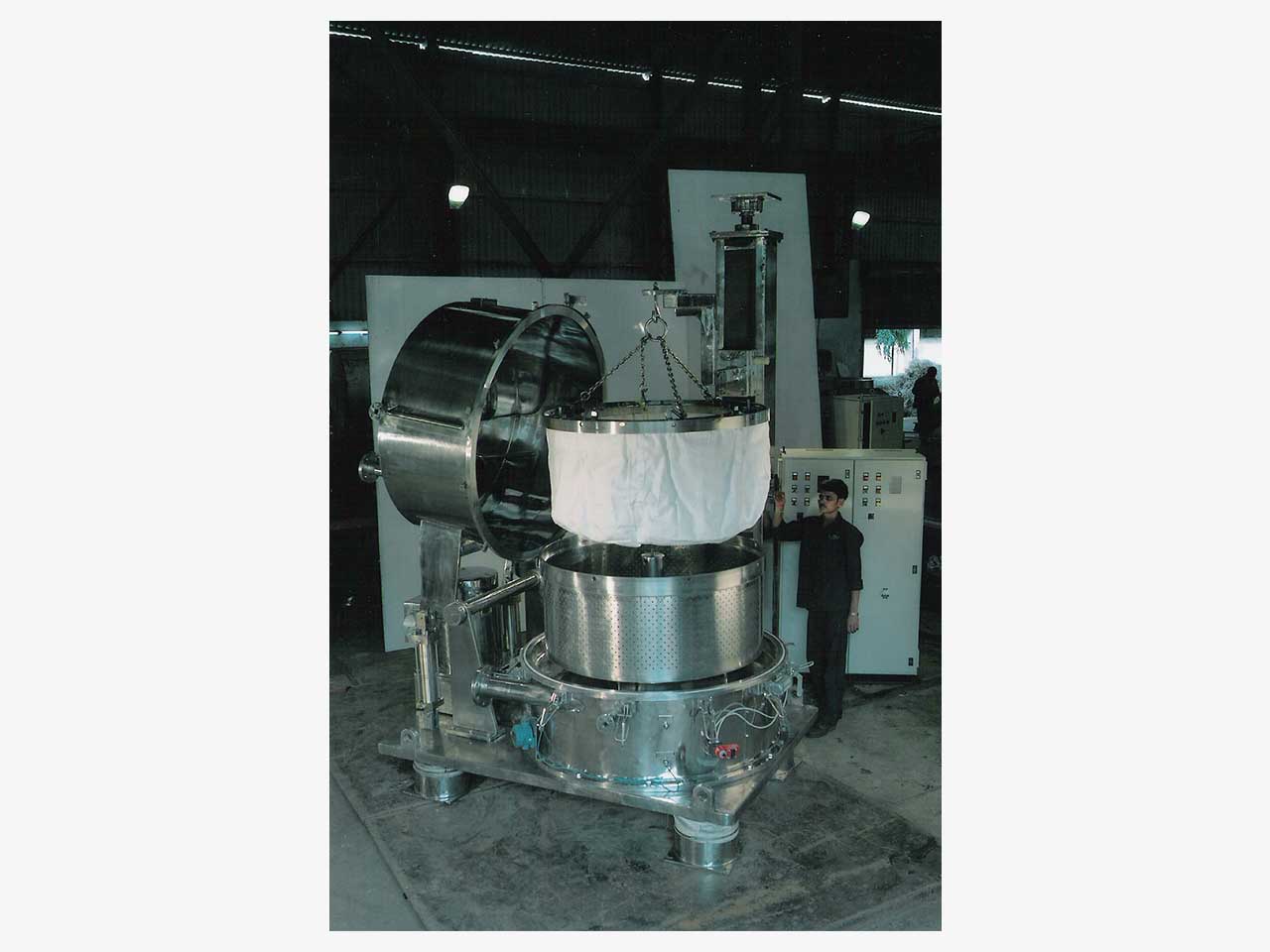

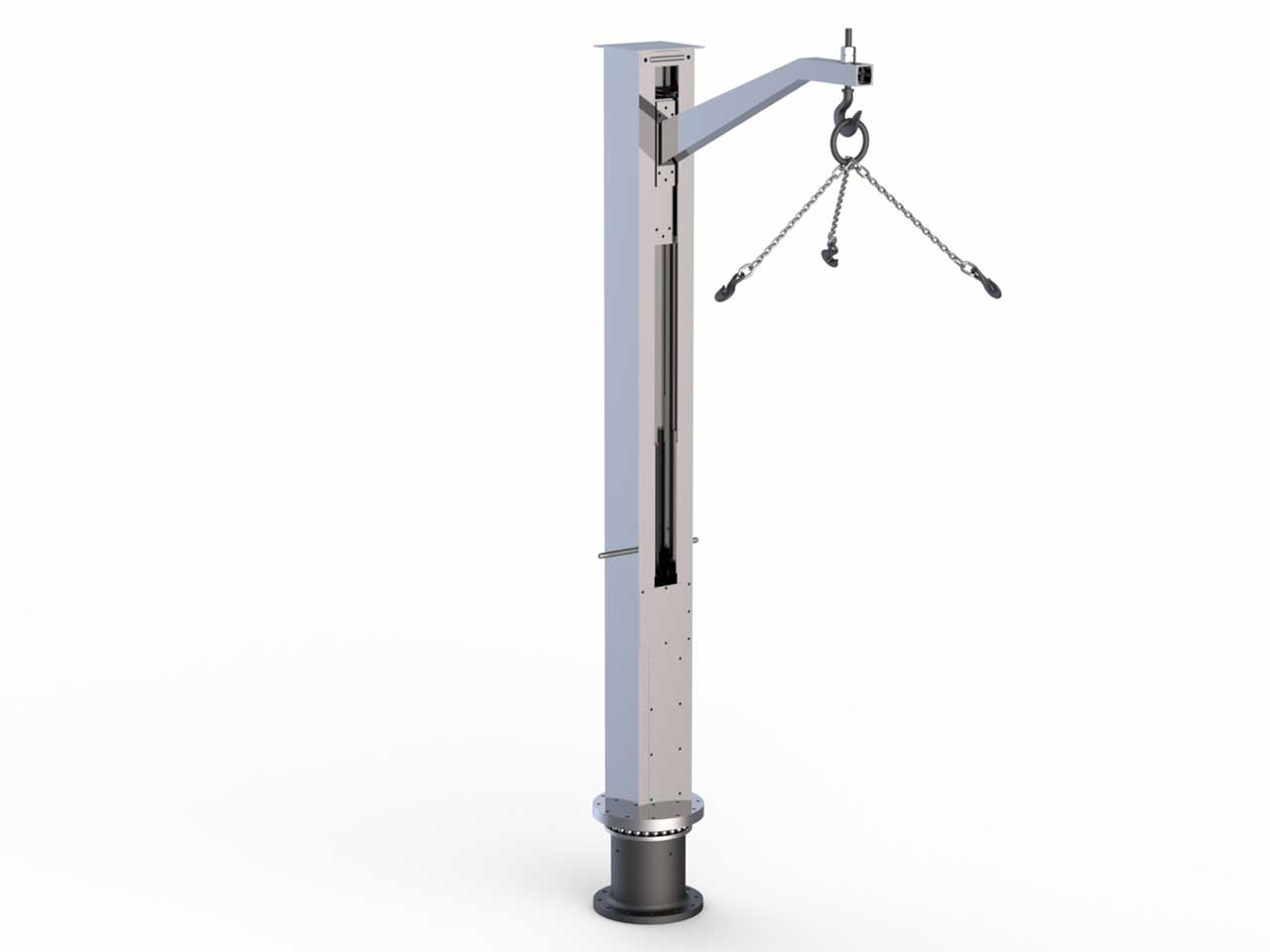

  • Filter Bag is lifted with the help of a lifting arrangement along with the detachable plate and cake is discharged through the center of the bag
  • Easy and quick Cake discharge
  • The less manual labor involved
  • Zero Heel residue
  • Cake handling loss negligible
  • Most suitable for Hard Cake
  • The scrapping of Cake not required
  • Uniform distribution of slurry
  • Uniform washing of cake
  • No manual contact with cake
  • Maximum use of basket
Zero Speed Interlock

The pneumatic cylinder will automatically get engaged with the lid as soon as basket starts rotating and gets disengaged only when it completely stops which will ensure that the lid can be opened only when the basket comes to a complete halt.

Proximity Sensor

Shall be provided as a safety interlock for the Lid / Body. Unless the Lid / Body is closed motor cannot start and once the lid is opened motor power cuts off.

Vibration Tripper

Will trip the Centrifuge during excessive vibration.

Nitrogen Blanketing System/Nitrogen Inertisation System

The Nitrogen Inertisation is provided to the centrifuge basket chamber (casing) and to the bearing housing (sealing system). This system shall ensure that during the gmp bag lifting centrifuge operation the adequate nitrogen pressure is maintained within the basket chamber and bearing housing stuffing box chamber. Therefore, creating a Flame Proof System.

Note: Oxygen Analyzer can be provided in the vent line.

Automation

Programmable Logic Controller

All the process cycles of lifting centrifuge operations can be automated through a Programmable Logic Controller. The instruments mounted on the machine will communicate with the PLC system. The process cycles can be specifically designed and programmed to work according to the logic.

Note: Intrinsically Safe Graphical control display (H.M.I) can be provided.

Design Variations Available

Full Body Opening (Hydraulic / Pneumatic)

Full Lid Opening (Hydraulic / Pneumatic / Spring Loaded)

MOC: Stainless Steel, Carbon Steel, Hastelloy etc.

Coating: Rubber Lined, Halar (ECTFE) Coating, Teflon (PFA) Coating etc.

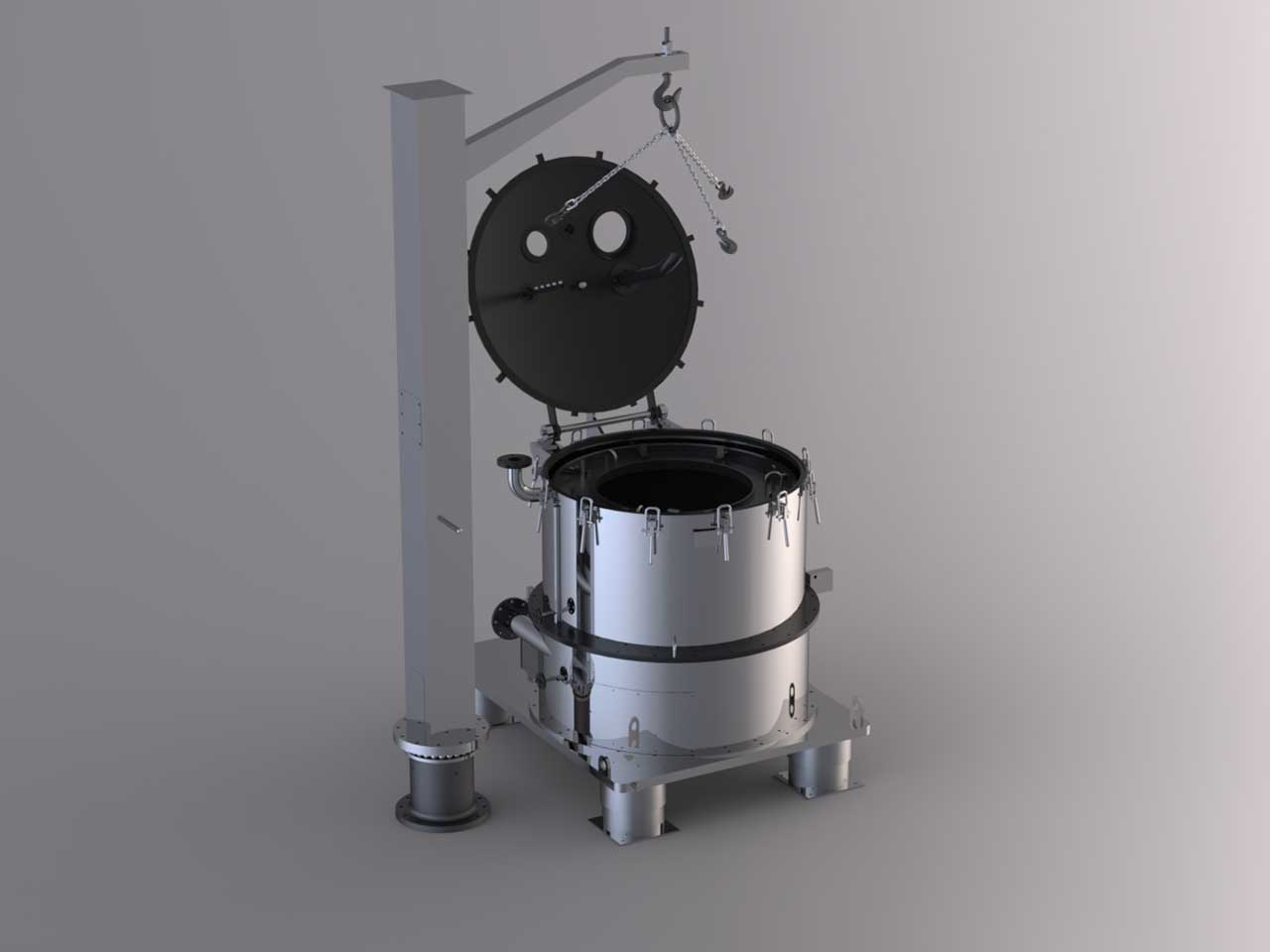

Lifting Bag Type Centrifuge.

Note: For any specific requirement for customization please feel free to contact us.

Full Body Top Opening Centrifuge.

Technical Specification Centrifuge Model
Details Unit SM 24 MTD SM 36 MTD SM 48 MTD SM 60 MTD
Basket Diameter mm. 600 900 1200 1500
Basket Depth mm. 300 450 450 500
Working Capacity under lip Lts. 65 205 300 590
Basket Load (Max) Kgs. 81 256 256 737.5
Max. Basket revolutions rpm. 1400 1100 1000 900
Centrifugal Force G. 668 619 682 691
Filtration Area m2 0.58 1.29 1.72 2.36
Motor Power kW 2.2 5.5 11 15
Overall Dimensions -
Length over Motor mm. 1450 1780 2150 2500
Width mm. 1000 1220 1600 1950
Operating Height mm. 1800 2400 2900 3200
Weight of Machine with Motor Kgs. 1350 3000 4750 6500

The centrifugal force relates to the basket diameter and maximum speed.

Basket load in Kgs. will vary based on Bulk Density of the material.

We reserve the right to alter size, weight and design features.

Lower / Higher Capacity models are available on request.
