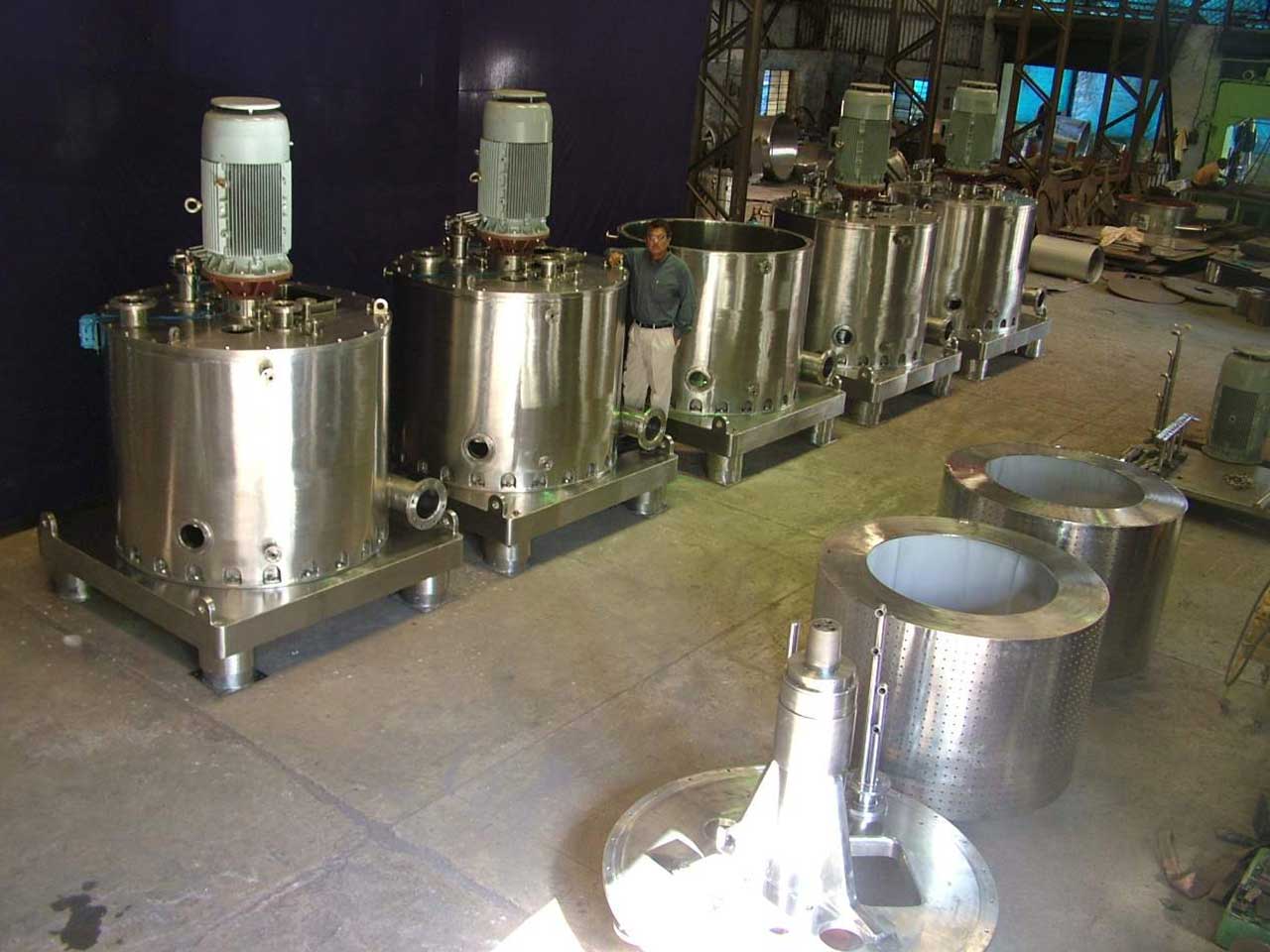

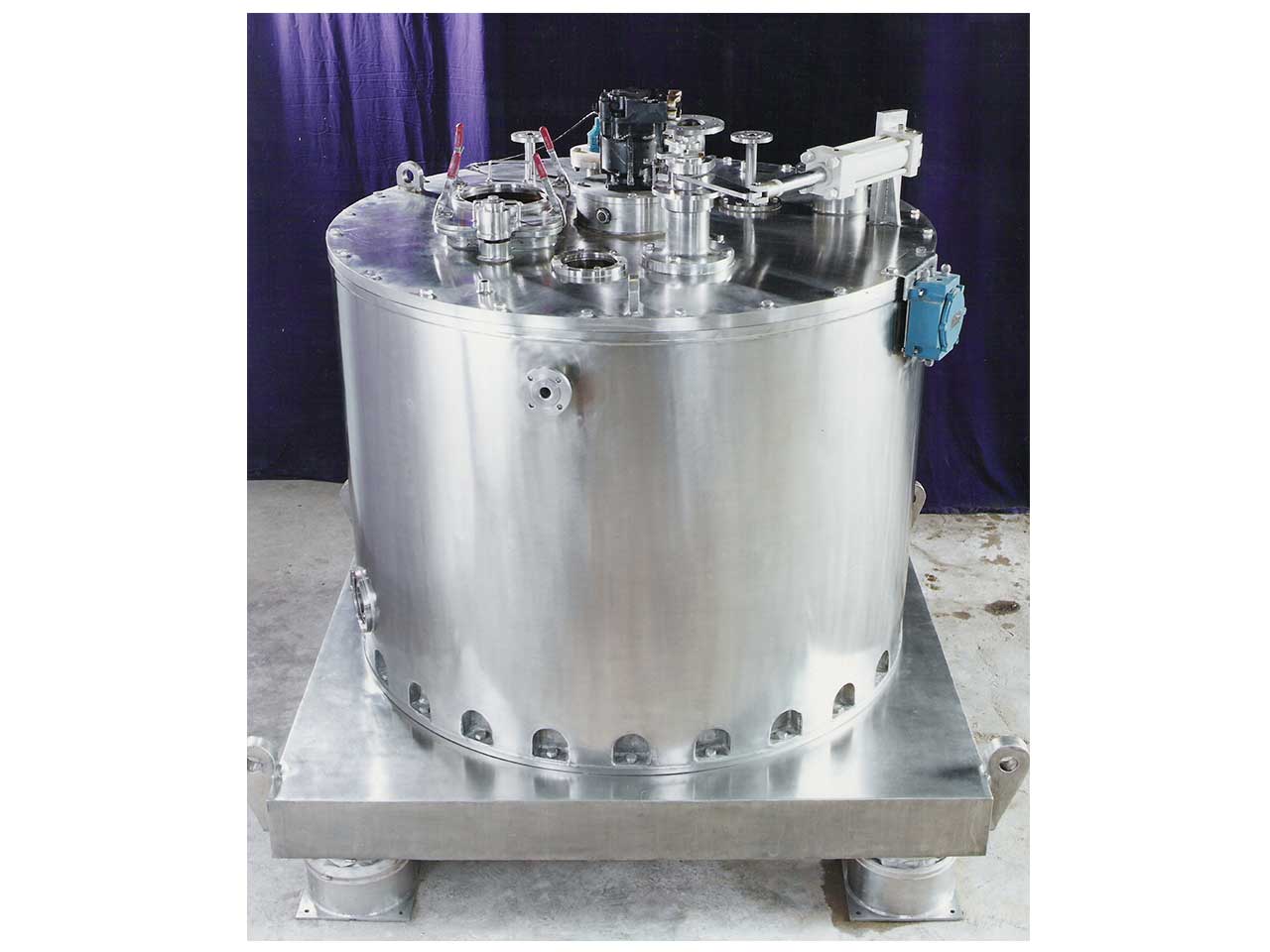

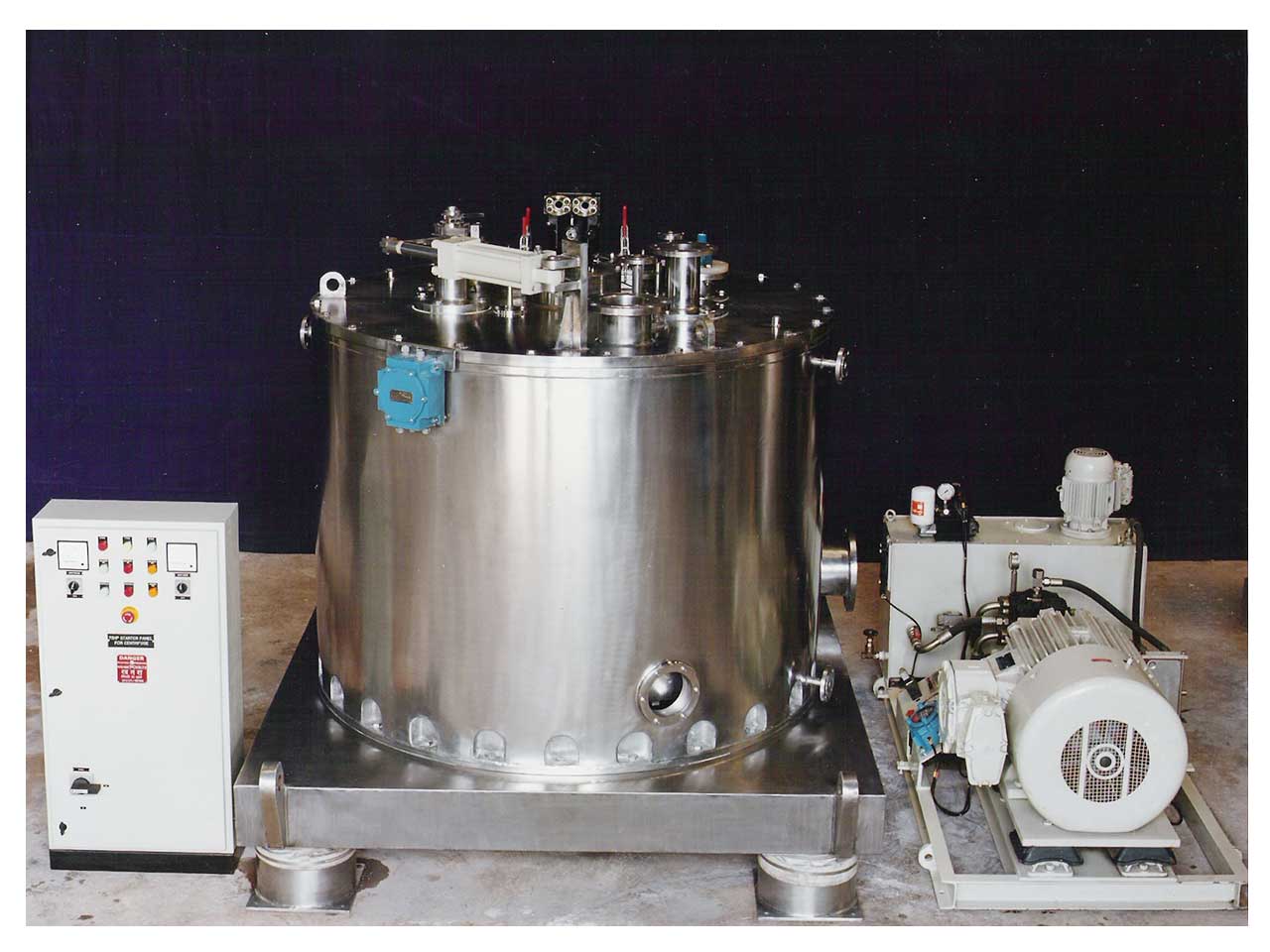

Top Driven Bottom Discharge
Top Bottom Discharge
Driven Bottom Discharge
Bottom Discharge
Top Driven Discharge
Surface Finish

Mirror or Matt Finish can be provided with Grit 220 & Above on Contact & Non-Contact areas.


A.C. Inverter Drive shall be provided to vary the basket speed with built-in dynamic braking.

Cleaning-In-Place (C.I.P.) Arrangement

Provided in the centrifuge machine to clean the internals of the centrifuge. CIP nozzles are placed at a different location to spray the wash liquid to all the surface which are not accessible from outside. During the cleaning process the centrifuge basket to be operated at a low speed to make cleaning more effective.

The 4-point Suspension

The centrifuge is mounted on inertia platform and suspended over four vibration-isolating dampers. This provides the following unique advantages:

No foundation required

Modular Design with Complete Flexibility to relocate the centrifuge anywhere in the plant.

Drive system (Belt & Pulleys) totally enclosed and can be purged with Nitrogen gas (Flameproof Design).

Four Point Mounting Centrifuge.

We have upgraded all our machines from three point centrifuge machines to four point suspensions.

Cake Sensor (Mechanical / Ultrasonic)

Can be provided to limit the cake thickness in the basket. The range of the cake thickness can be adjusted to avoid material overflow.

  • Self-Circulating oil lubricating system to extend bearing life
  • Durable & maintenance free design.
  • The Solid Filter Cake is cut with the help of a single motion serrated scraper blade.
  • Solids discharge through a single outlet.
  • Solids can be Discharged in totally vapor tight condition, thus there are no health hazards to the operator.
  • The complete centrifuge is pressure tested as per DIN standard.
  • Complete operation cycle can be programmed via a PLC, drastically reducing manual labor
  • Handling of discharge solids can be easily done with the help of a conveyor or trolley.
  • No manual contact with cake, thus no contamination.
  • Heel Blow Back system available to dislodge the residual cake.
  • Complete operation cycle can be programmed via a PLC, drastically reducing manual labor.
  • Spray jets for efficient washing.
Zero Speed Interlock

The pneumatic cylinder will automatically get engaged with the lid as soon as basket starts rotating and gets disengaged only when it completely stops which will ensure that the lid can be opened only when the basket comes to a complete halt.

Proximity Sensor

Shall be provided as a safety interlock for the Lid / Body. Unless the Lid / Body is closed motor cannot start and once the lid is opened motor power cuts off.

Vibration Tripper

Will trip the Centrifuge during excessive vibration.

Vibration Monitoring System

This system shall continuously monitor the vibration level of the machine. The system has two set point, one set point is for Alarm level and another set point is for the trip level. The system also gives 4-20 amps output which can be hooked up to PLC.

Nitrogen Blanketing System/ Nitrogen Inertisation System

The Nitrogen Inertisation is provided to the centrifuge basket chamber (casing) and to the bearing housing (sealing system). This system shall ensure that during the centrifuge operation the adequate nitrogen pressure is maintained within the basket chamber and bearing housing stuffing box chamber. Therefore, creating a Flame Proof System.

Note: Oxygen Analyzer can be provided in the vent line.


Programmable Logic Controller

All the process cycles of centrifuge operations can be automated through a Programmable Logic Controller. The instruments mounted on the machine will communicate with the PLC system. The process cycles can be specifically designed and programmed to work according to the logic.

Note: Intrinsically Safe Graphical control display (H.M.I) can be provided.

Heel Blowback System

The centrifuge machine is fitted with residual cake heel blowback system, which will remove the residual cake heel after the scraping operation.

Design Variations Available

Serrated / Knife edge scraper blade

Oil Lubrication / Grease lubrication for bearing

Electric / Hydraulic Motor can be coupled directly to the spindle

Centre Large Opening / Kidney type Solid discharge ports

MOC: Stainless Steel, Carbon Steel, Hastelloy etc

Coating: Rubber Lined, Halar (ECTFE) Coating, Teflon (PFA) Coating etc

Note: For any specific requirement for customization please feel free to contact us.

Halar Coated Centrifuge Machines.

Full Body Top Opening Centrifuge.

Technical Specification Centrifuge Model
Details Unit SM 48 TDBD SM 60 TDBD SM 60D TDBD
Basket Diameter mm. 1224 1524 1524
Basket Depth mm. 760 760 1000
Cake Thickness mm. 184 184 250
Capacity Lts. 450 770 1010
Basket Load (Max) Kgs. 562 770 1010
Filtration Area m2 2.87 3.64 4.8
Centrifugal Force G. 900 615 615
Motor Power HP 30 40 75
Overall Dimensions -
Length mm. 1778 2000 2000
Width mm. 1778 2000 2000
Operating Height mm. 1752 2500 2500
Weight of Machine with Motor Kgs. 6000 7000 10000

The centrifugal force relates to the basket diameter and maximum speed.

Basket load in Kgs. will vary based on Bulk Density of the material.

We reserve the right to alter size, weight and design features.

Values indicated are approximate & may vary on actual machines.

Lower / Higher Capacity models are available on request.
