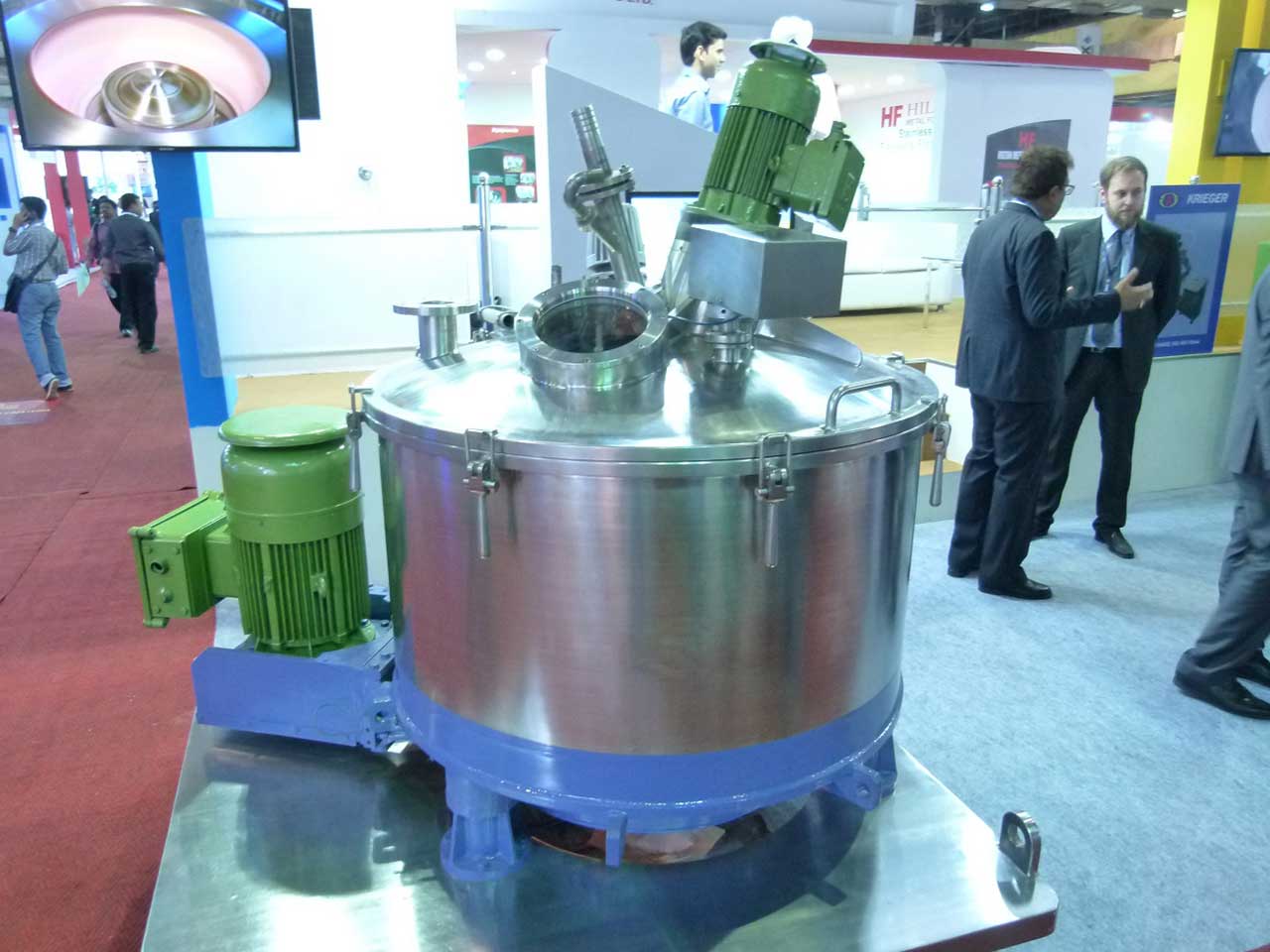

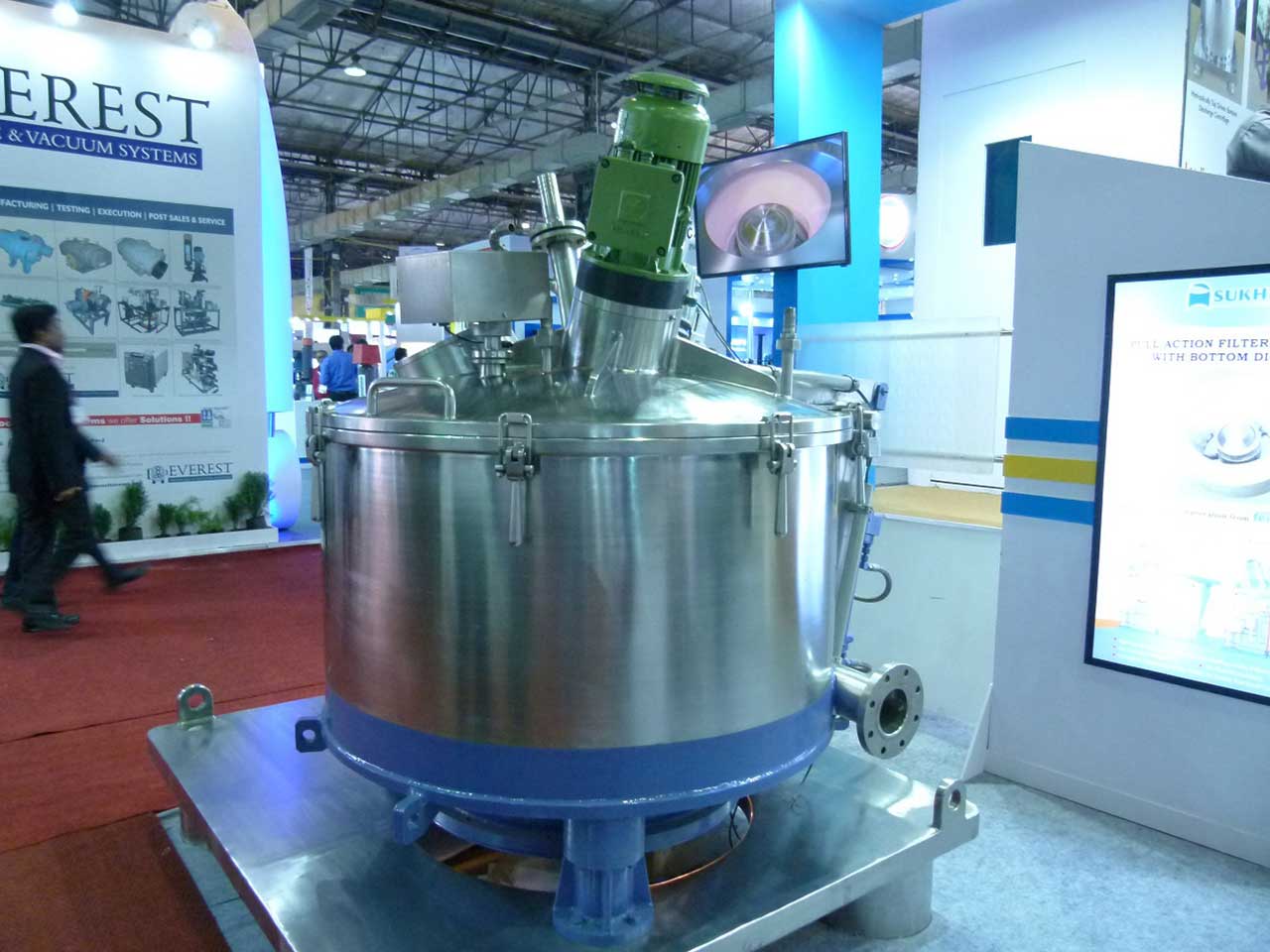

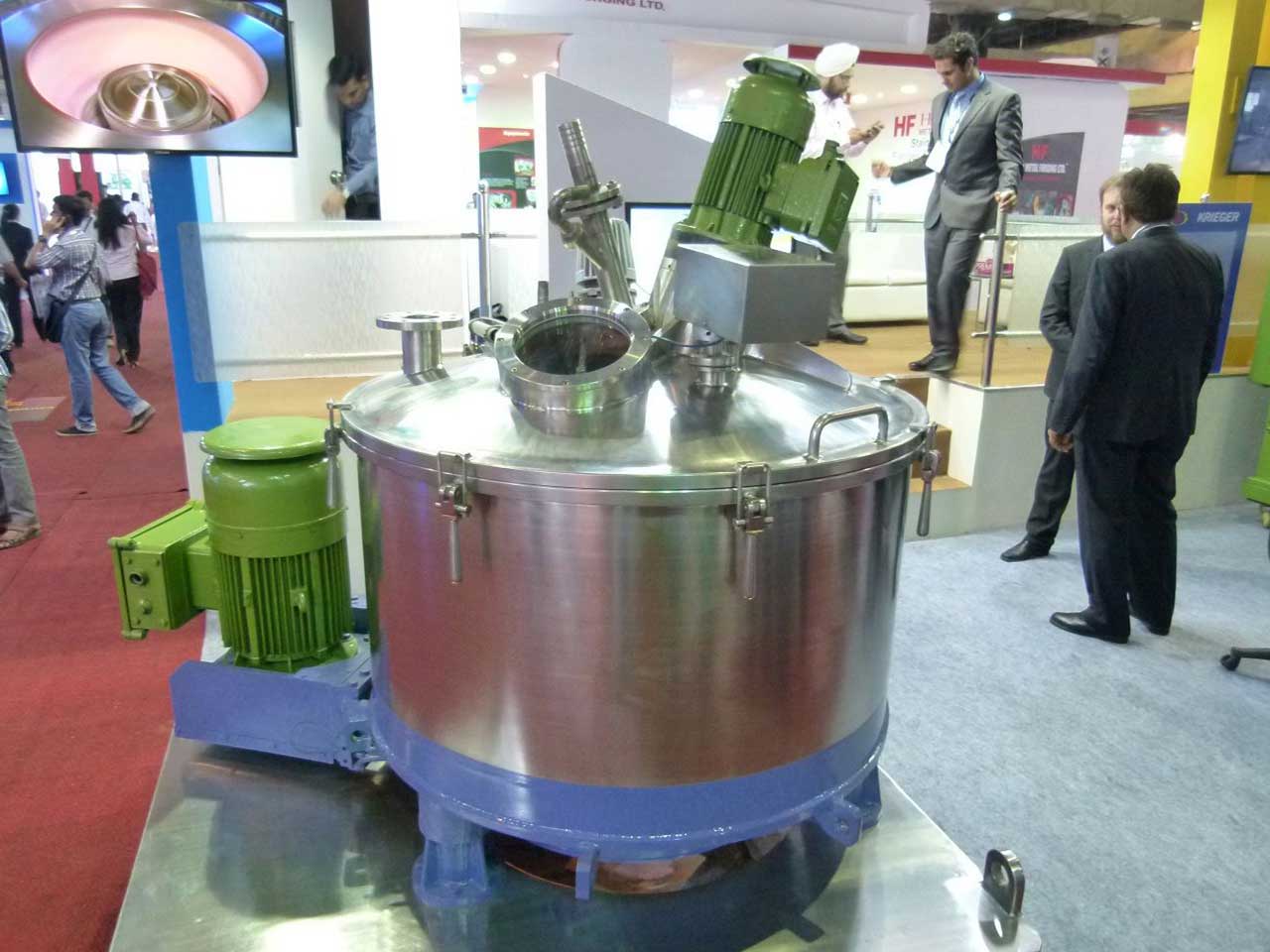

Pull Discharge Centrifuge
Pull Action Centrifuge
Pusher Discharge Centrifuge
Pusher Discharge
Surface Finish

Mirror or Matt Finish can be provided with Grit 220 & Above on Contact & Non-Contact areas.

Drive

A.C. Inverter Drive shall be provided to vary the basket speed with built-in dynamic braking.

Cleaning-In-Place (C.I.P.) Arrangement

Provided high speed centrifuge machine to clean the internals of the centrifuge. CIP nozzles are placed at the different location to spray the wash liquid to all the surface which are not accessible from outside. During the cleaning process the pusher centrifuge basket machine to be operated at a low speed to make cleaning more effective.

The 4-point Suspension

The centrifuge is mounted on inertia platform and suspended over four vibration-isolating dampers. This provides the following unique advantages:

No foundation required

Modular Design with Complete Flexibility to relocate the centrifuge anywhere in the plant.

Drive system (Belt & Pulleys) totally enclosed and can be purged with Nitrogen gas (Flameproof Design).

Four Point Mounting Centrifuge.

We have upgraded all our machines from three point centrifuge machines to four point suspensions.

Cake Sensor (Mechanical / Ultrasonic)

Can be provided to limit the cake thickness in the basket. The range of the cake thickness can be adjusted to avoid material overflow.

  • Solids will be discharged from the bottom by pulling the filter cloth pneumatically.
  • Conical Rotating feeder for uniform slurry distribution & cake washing.
  • No scraping required.
  • No Heel Remaining.
  • The complete centrifuge is pressure tested as per DIN standard.
  • Handling of discharge solids can be easily done with the help of a conveyor or trolley.
  • No manual contact with cake, thus no contamination.
Zero Speed Interlock

A pneumatic cylinder will automatically get engaged with the lid as soon as basket starts rotating and gets disengaged only when it completely stops which will ensure that the lid can be opened only when the basket comes to a complete halt.

Proximity Sensor

Shall be provided as a safety interlock for the Lid / Body. Unless the Lid / Body is closed motor cannot start and once the lid is opened motor power cuts off.

Vibration Tripper

Will trip the Centrifuge during excessive vibration.

Vibration Monitoring System

This system shall continuously monitor the vibration level of the machine. The system has two set point, one set point is for Alarm level and another set point is for a trip level. The system also gives 4-20 amps output which can be hooked up to PLC.

Nitrogen Blanketing System/ Nitrogen Inertisation System

The Nitrogen Inertisation is provided to the pusher centrifuge basket chamber (casing) and to the bearing housing (sealing system). This system shall ensure that during the pusher centrifuge machine operation the adequate nitrogen pressure is maintained within the basket chamber and bearing housing stuffing box chamber. Therefore, creating a Flame Proof Systems.

Note: Oxygen Analyzer can be provided in the vent line.

Automation

Programmable Logic Controller

All the process cycle of centrifuge operation can be automated through a Programmable Logic Controllers. The instrument mounted on the machine will communicate with the PLC system. The process cycles can be specifically designed and programmed to work according to the logic.

Note: Intrinsically Safe Graphical control display (H.M.I) can be provided.

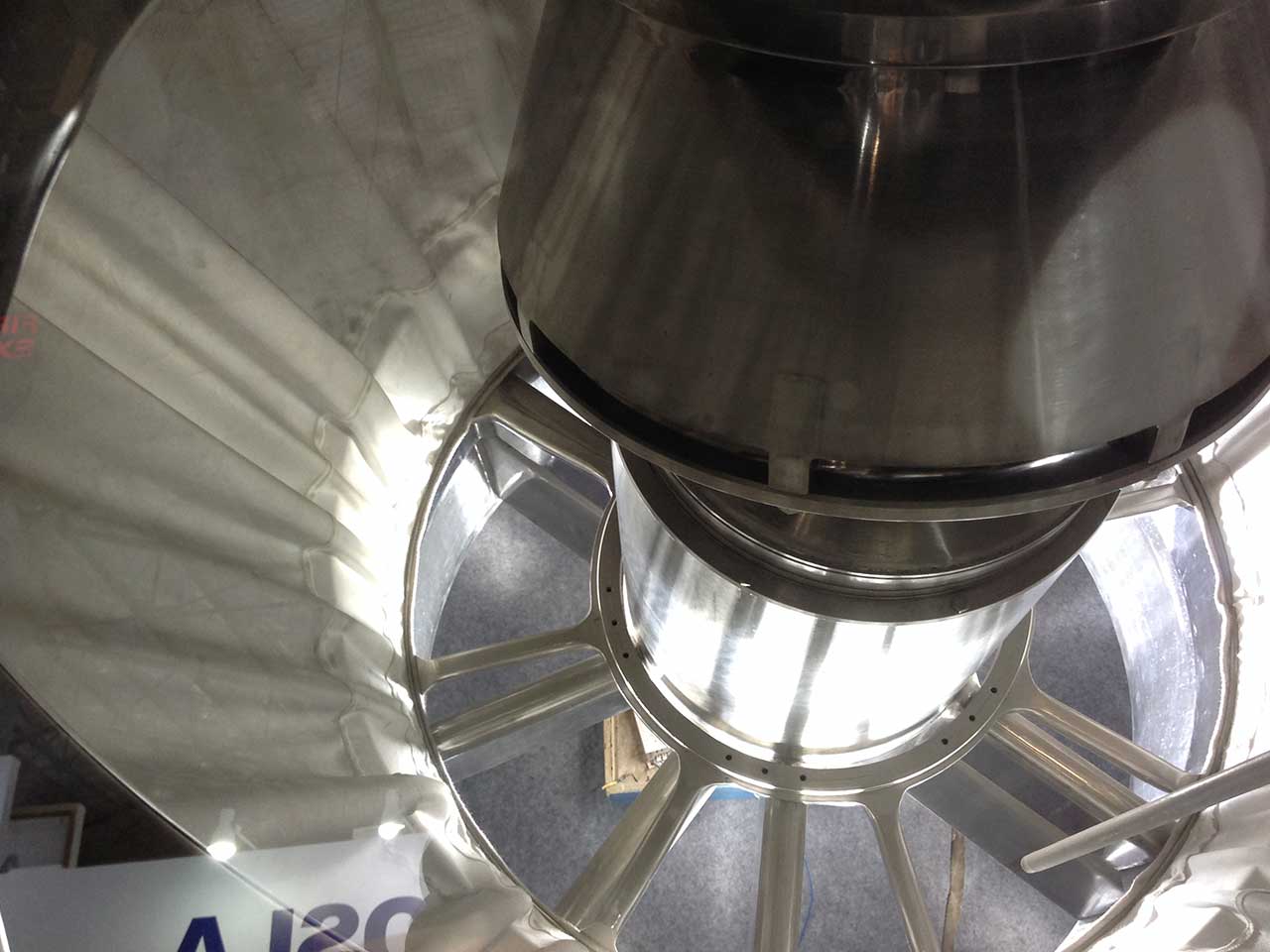

Motorised Conical Feeder

It comprises concentric cones fabricated out of SS-316 sheet driven by 1 H.P. motor with frequency drive. This system facilitates uniform distribution of cake throughout the basket. Washing of the cake can also be performed through the same cone. The design also facilitates speedy extraction of mother liquor and wash liquid as well.

Design Variations Available

Dual Motion Scrapper option available for cake cutting.

MOC: Stainless Steel, Carbon Steel, Hastelloy etc.

Coating: Rubber Lined, Halar (ECTFE) Coating, Teflon (PFA) Coating etc.

Note: For any specific requirement for customization please feel free to contact us.

Halar Coated Centrifuge Machines.

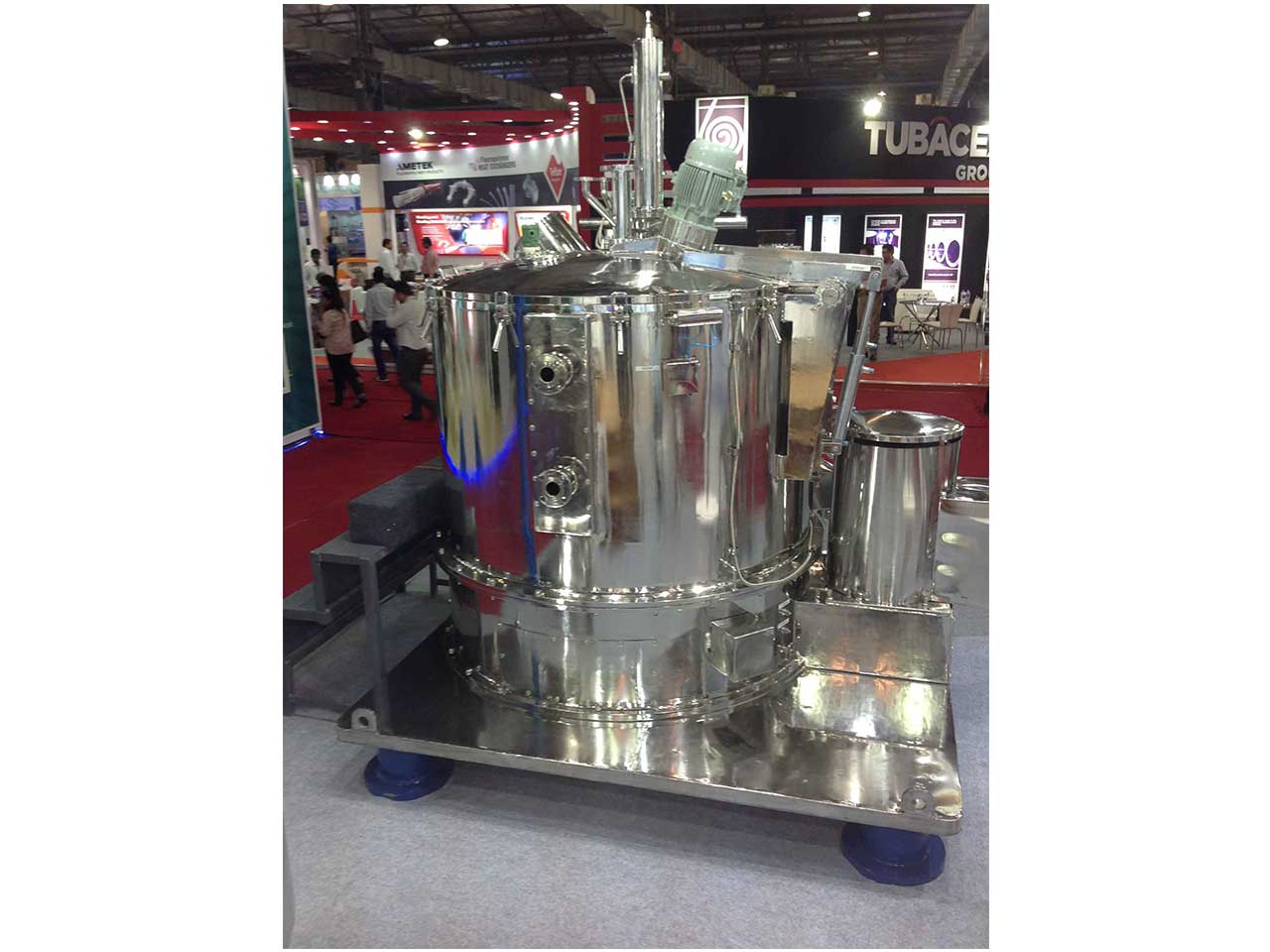

Full Body Top Opening Centrifuge.

Technical Specification Centrifuge Model
Details Unit SM 1000 PABD SM 1250 PABD SM 1600 PABD
Basket Diameter mm. 1000 1250 1600
Basket Depth mm. 380 450 900
Working Capacity under lip lts. 152.2 281.6 800
Basket load (Max) kgs. 190.3 352 800
Max. Rotation Speed rpm. 1200 950 850
Centrifuge Force G. 805 631 646
Filtration Area m2 1.19 1.77 5
Motor Power kW. 18.5 22 37
Overall Dimensions -
Length mm. 2000 2100 3250
Width mm. 1900 2500 2400
Operating Height mm. 1800 1900 5675
Weight of Machine with Motor Kgs. 3500 5000 10000

The centrifugal force relates to the basket diameter and maximum speed.

Basket load in Kgs. will vary based on Bulk Density of the material.

We reserve the right to alter size, weight and design features.

Lower / Higher Capacity models are available on request.
