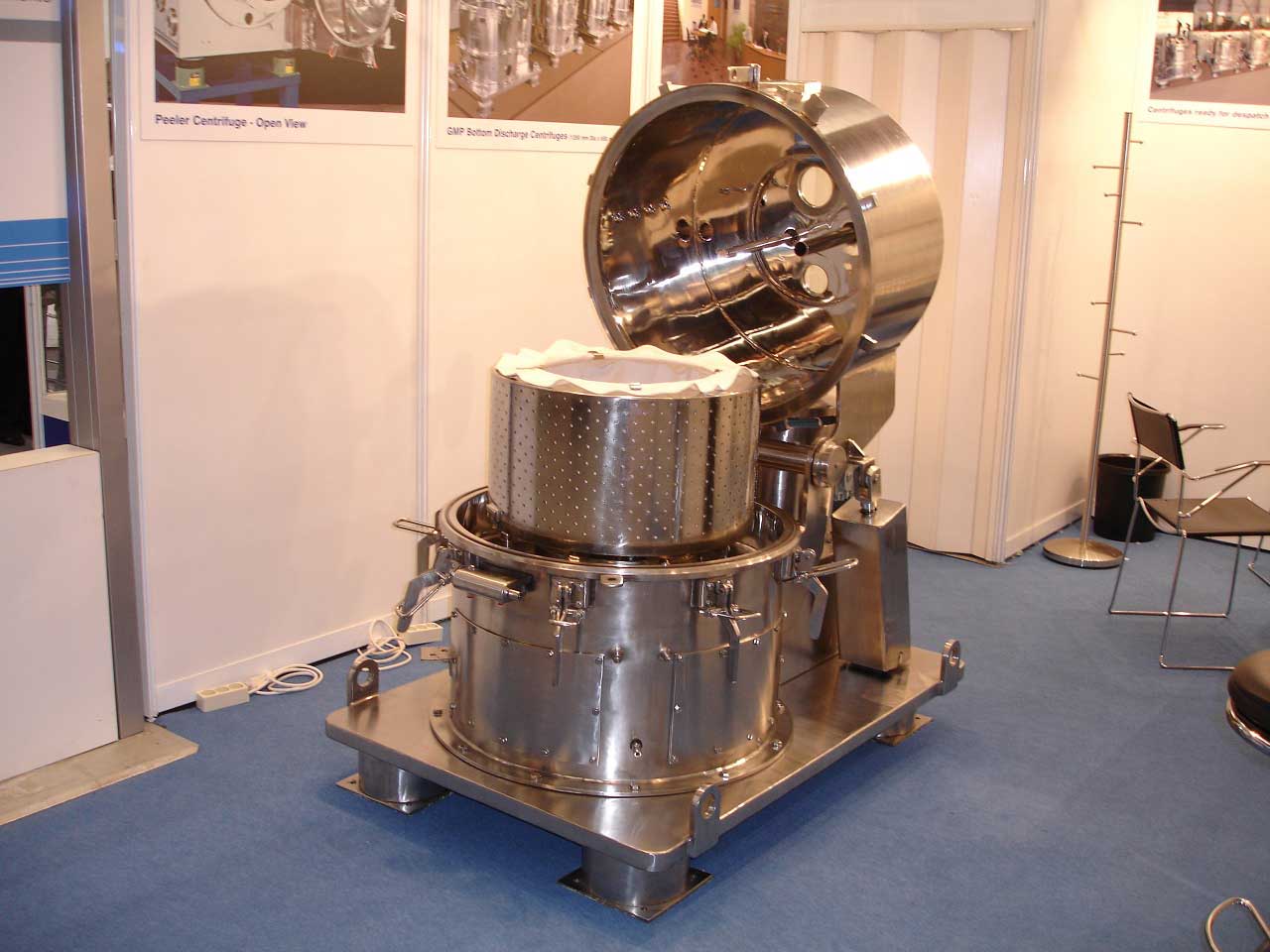

Manual Table Top Discharge Centrifuge
Manual Top Discharge Centrifuge
Manual Table Top Discharge Centrifuge Machine
Surface Finish

Mirror or Matt Finish can be provided with Grit 220 & Above on Contact & Non-Contact areas.


A.C. Inverter Drive shall be provided to vary the basket speed with built-in dynamic braking.

Cleaning-In-Place (C.I.P.) Arrangement

Provided in the manual top discharge centrifuge machine to clean the internals of the centrifuge. CIP nozzles are placed at the different location to spray the wash liquid to all the surface which are not accessible from outside. During the cleaning process the manual centrifuge basket to be operated at a low speed to make cleaning more effective.

The 4-point Suspension

The centrifuge is mounted on inertia platform and suspended over four vibration-isolating dampers. This provide the following unique advantages:

No foundation required

Modular Designed with Complete Flexibility to relocate the centrifuge anywhere in the plants.

Drive system (Belt & Pulleys) totally enclosed and can be purged with Nitrogen gas (Flameproof Design).

Four Point Mounting Centrifuge.

We have upgraded all our machines from three point centrifuge machines to four point suspensions.

Cake Sensor (Mechanical / Ultrasonic)

Can be provided to limit the cake thickness in the baskets. The range of the cake thickness can be adjusted to avoid materials overflow.

  • Simple Design & Operation
  • Manual Filter Cake Removal
  • Negligible Heel Residue
  • Solid Discharge Without Particle Destruction
  • Quick Changeover For Multi Product
  • Gas Tight Design
  • cGMP
Zero Speed Interlock

The pneumatic cylinder will automatically get engaged with the lid as soon as basket start rotating and gets disengaged only when it completely stop which will ensure that the lid can be opened only when the basket come to a complete halt.

Proximity Sensor

Shall be provided as a safety interlock for the Lid / Body. Unless the Lid / Body is closed motors cannot start and once the lid is opened motor powers cut off.

Vibration Tripper

Will trip the Centrifuge during excessive vibration.

Design Variations Available

Full Body Opening (Hydraulic / Pneumatic)

Full Lid Opening (Hydraulic / Pneumatic / Spring Loaded)

Half Lid Opening

MOC: Stainless Steel, Carbon Steel, Hastelloy etc.

Coating: Rubber Lined, Halar (ECTFE) Coating, Teflon (PFA) Coating etc.

Laboratory Centrifuge Machine.

Halar Coated Centrifuge Machines.

Full Body Top Opening Centrifuge.

Technical Specification Centrifuge Model
Details Unit SM 24 MTD SM 36 MTD SM 48 MTD SM 60 MTD
Basket Diameter mm. 610 900 1200 1500
Basket Depth mm. 300 480 480 530
Working Capacity under lip Lts. 49 165 294 520
Basket Load (Max) Kgs. 49 165 294 520
Max. Basket Revolutions rpm. 1200 1000 900 800
Centrifugal Force G. 491 503 543 536
Filtration Area m2 0.57 1.35 1.81 2.5
Motor Power kW 2.2 5.5 11 15
Overall Dimensions -
Length mm. 1450 1950 2150 2550
Width mm. 1000 1500 1800 2260
Operating Height mm. 1650 2275 2160 2325
Weight of Machine with Motor Kgs. 1000 2750 4500 6000

The centrifugal force relate to the basket diameter and maximum speed.

Basket load in Kgs. will vary based on bulk Density of the material.

We reserve the right to alter size, weight and design features.

Lower / Higher Capacity models are available on request.
